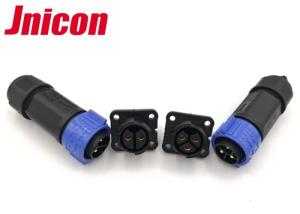

Jnicon 5G Base Station 50A High Current Waterproof Connector

Name: Jnicon 5G Base Station 50A High Current Waterproof Connector
Brand: Jnicon
Price: 1 USD

China Jnicon 5G Base Station 50A High Current Waterproof Connector wholesale

Brand Name : Jnicon

Model Number : High Current Waterproof Connectors

Certification : UL/CE/TUV/CQC/RoHS

Place of Origin : China

MOQ : 100 (10 Pairs of samples)

Price : Negotiable

Payment Terms : L/C,T/T,Paypal,Western Union

Supply Ability : 10000pcs/day

Delivery Time : 3-5 working days

Packaging Details : 1.Plastic bag; 2.Carton; 3.As per customer's requirement

Name : 50A waterproof connector

Current Rating : 50A

Material : High performance engineering plastics

Certificates : CE, ROHS,UL,TUV,CQC

Colour : Blue/Yellow/White

Application : 5G base station

Contact Now

Jnicon 5G Base Station High Current Waterproof Connector with 50A Power Connector

Product Description

The M25 connector is widely used in the construction of 5G base station, which supports stable signal transmission while providing
high current.Multi pin is supported,and we also can process the cable according to the customer request.

Jnicon Service and Warranty

1. Low MOQ: It can meet your business very well.
2. Good services: We treat you as our friends.
3. Packaging: Package will do after several discussions with you.
5. Good quality: The order only will start after you confirm the samples and the products will do 100% inspection before shipping.
6. OEM accepted: Please send us your design and other important information. OEM are always welcome.

Product Parameter

Specifications
Connecting mode	Push locking type
Protection level	IP67
Cable specification	0.5mm² ~ 6.0mm² /20~10AWG
Diameter range	Φ6mm ~Φ16mm
Contact diameter×Qty	Φ3.5x3
Current rating(A)	50A
Operating voltage(AC.V.rms)	500V
Withstand voltage(AC.V)1min	2500V
Contact resistance	<2.5mΩ
Insulation resistance	>500MΩ
Durability	≥5000 mating&unmating cycles
Temperature rating	-40°C~105°C
Method of connecting cable	Solder/Screw
Prevent the combustion level	UL94-V0

To Be Your The Best Connection Expert

1)Good quality in ip67 waterproof in locked condition with ISO9001 management under
efficient service

2) Provide free samples within 3 working days if it is normal product with existing tooling

3) Effective communication and rapid response

Material
Insulated parts	High performance engineering plastics
Connector Shell	PA66
Contact pin	Copper alloy(gold-plated)
Spring	Plastic
Sealing	Silica gel

Product Dimension

Jnicon 5G Base Station 50A High Current Waterproof Connector

Product Application

FAQ

Q1. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q2. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q3.Can I visit your factory?
A: Yes,It will be better for us face to face to talk about the project.And I am sure you will be confident in us after you visit our factory.
Q4.How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
